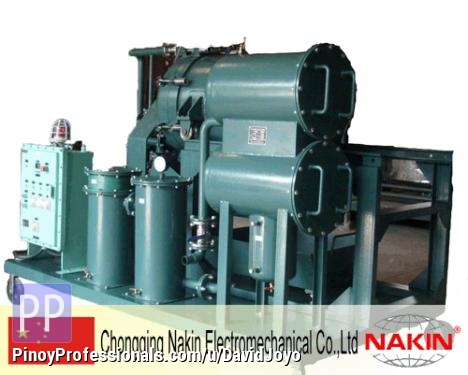

Series TPF Used Cooking Oil Filtration

Introduction:

This filtration plant is special for filtering waste cooking oil; it removes impurity, odor, water, acid and alcohol etc. from oil completely and effectively. Treated cooking oil color is limpidity, oil is good smell. This filtration plant is suitable for food factory, cooking oil factory, vegetable oil factory, it can help factory reclaim remnants oil. Also, TPF is a good filtration part for bio-diesel oil making.

The machine feature and working process:

1. This plant composed by two parts, one is the press filter, and other one is the vacuum oil purifier system. The press filter can remove the big and tiny impurity; the precision of purification can reach to 1 Micro. The Vacuum system equips three grades filter (primary filter, mass water separator, and fine filer). All process works under the vacuum condition.

2. For the primary filter, which is made of the stainlessness steel, it is anti-rust and anti-corrupt, it mainly removes the residual impurity which escape from the press filter, making sure the oil have not any impurity when it goes into the water separator and vacuum separator.

3. The water separator, which equips the special filter, which mainly remove the mass water from the oil, because usually the waste cooking oil always contains much water, so we need remove the mass from the oil. After the water separator, the oil just contains the tiny water and soluble water.

4. After the process of the water separator, the oil will goes into the vacuum separator, which adopts three-dimensional duplex evaporation and film evaporation. For protecting the oil nature, it is better that the oil temperature is lower than 80 C, Because our machine works under the vacuum and low pressure condition, so it don’t need heat the oil to 100 C, usually it just need heat the oil to 45 C, Then it can remove the tiny water, soluble water, acid, alcohol and other volatility liquid and so on completely and effectively.

5. The fine filer, which is equips the stainlessness steel filter, the purification hole is less then 1 Micro, which can make sure the oil is completely clear, no any impurity.
