Hydraulic Oil Purifier/ Hydraulic Fluid Recondition/Oil Filtration/Oil Purification
Description
Make:Lexus
Model:54
Year:2008
Condition:New
Location:NO.101 Torch Avenue ,Jiulongpo District,Chongqing,China
, CN 400039
Contact: Rocky Chen
Tel: +86-23-68681152
Fax: +86-23-68060921
Mob: +86-15826146151
oil.purifier.rocky@gmail.com
oil_purifier_rocky@hotmail.com
http://oilsalvage.diytrade.com
http://rockyoilpurifier.ec51.com/
http://oilpurifier.blog.com
http://www.zhongnengcq.cn/english/index.asp
Transformer oil purifier oil recycling Lubricant Oil Purifier oil purification oil regeneration oil purifier oil tester oil analyzer
Product Description

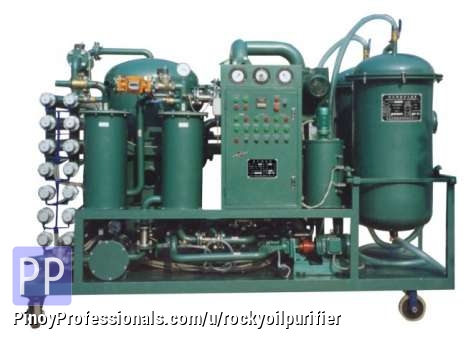

TYC series is specifically designed for purifying and regenerating the used fire-resistance hydraulic oil.
Feature:
• Ideal for Hydraulic Oil Purification
• Advanced demulsification technology
• Highly effective moisture removal for Hydraulic Oil
• Eight models are available to accommodate various flow rates
• Fluid cleanliness grade (NAS) to 6 or better
• Continuously removes free water down to 80 ppm or less
• Coalescence-separation technology
• Dual water and particulate removal
• Double-infrared fluid level controller
• A trinity of interlocked preventive device
• Carbon fiber infrared heating system
• Automatic back-flushing system.
• Explosion-proof type available
Advantage:
This product takes the unique nano-molecule purifying technology to make the oil containing few water and impurities so that it can be used repeatedly in the highly precise equipment.
Technical Parameter dd
Item
Unit
TYC-10
TYC-20
TYC-30
TYC-50
TYC-100
TYC-150
TYC-200
Flow
L/min
10
20
30
50
100
150
200
Working pressure
Mpa
≤0.3
Power
dB(A)
380V 50HZ(Or according to customer's demands)
Noise
dB(A)
≤65~80
Trouble-free
h
≥4000
Continuous working time
h
≥150
Thermal rating
Kw
9
9
9
12
30
45
60
Total electric power
Kw
12.5
13
14
18.5
39
56
75
Dimensions
Length
mm
1500
1600
1650
1700
1750
1800
2200
Width
mm
1000
1200
1250
1300
1400
1400
1550
Height
mm
1700
1700
1800
1850
1900
1900
2050
Index for oil treatment
Demulsification value
min
≤15/min(GB/F7035)
Water contain
ppm
≤50
Air content
%
≤0.1%
Acid value
mKOH/g
≤0.05
Resistance value
Ω
≤5.0x109Ω
