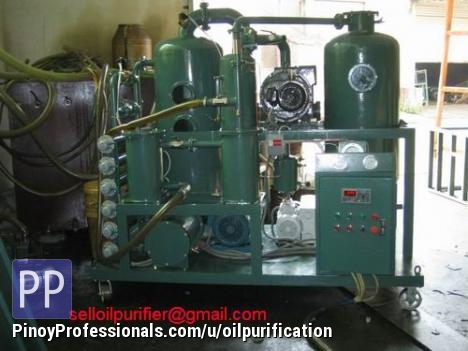

Series ZYD-I Double-stage Vacuum Transformer Oil Purifier and Oil Regeneration Machine

※    Application: Series ZYD-I Double-stage vacuum Transformer oil purifier and oil regeneration machine is mainly used for purifying the insulating oil, transformer oil, mutual oil, switch oil, dielectric oil and so on.

 The series ZYD-I Double-stage vacuum Transformer oil regeneration purifier not only provide dewaters, degases and remove impurities, but also remove acidity, sludge, free carbon, other soluble oil decay products and discoloration.Also it can vacuum filling oil to transformer, vacuum dry transformer and on-line operation transformer. Because Series ZYD-I have double-infrared fluid level auto-control systems and Germany's 3UG3 Phase relay which can auto-control oil inlet and outlet. So it can absolute guarantee the oil purifier constant cycle. So will also ensure there have constant oil in transformer in different circumstances. So series ZYD-I can work with energized transformer.

※ Feature:

1. This machine is high effective and portable, which is very suit to operate on line. Also it can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.

2.The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate.

3. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.

4. High absorption speed, absorption speed power more than 333L/Sr.

5. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.

6. UK G technology by which the trace water that is show chain, such as dissolved water, can be removed effect.

7. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment.

9. The oil of any grades can be treated on line at the working site.

10. The Automatic oil purifier model is installed with PLC (Programmable logical control  system) which can control the equipment automatically to every stage of its process and ensure its process and ensure its safe operation on site and on line without human supervision.

11. Can be operated both on-line and off-line.

*  Working Principle

When this machine start working, the used oil will be injected into the primary filter under the pressure, the primary filter will remove the big impurities, then the oil which just contains the particles is heated by the heater. Then the treated oil enter into the vacuum separator, the vapor is separated from the oil and refrigerate to water under the process of the lowest-vacuum pressure and the degassing equipments. The last procedure is that the fine filter removes the particles completely. When need regeneration the oil, just open valve. The oil flow into regeneration device, the polarity material is removed and reach the purpose of purification. The Regeneration device recover deteriorated transformer oil and breaker oil through removing the acid content, suspended matter and precipitated residues from the oil.

We supply vacuum Transformer oil filtration machine, Insulating oil purifier, Turbine oil filter, Lubricating oil recycling system. If you have any interesting, please contact us. Our contact information as below:
