MAB-103, MAB-104 Alfa Laval Oil Purifier, Industrial Centrifuge, Alfa Laval Oil Separator Spares

DMARITIME2@GMAIL.COM

Machine Application:

The MAB 103 high speed disc stack centrifuge is designed for purification or clarification of fuel oils, engine oils, lubricating oils, and various mineral oils used on board marine installations and in industrial applications.

Separator Design:
The MAB 103 is driven by a horizontal driveshaft, friction clutch, worm wheel gear and vertical drive shaft. This is all housed within the separator frame, the worm wheel gear is situated in an oil bath to ensure smooth running. The brake is situated on the top part of the frame; braking directly onto the bowl.

The bowl is fixed onto the vertical drive shaft situated in the top part of the frame. The frame hood is hinged to enable easy access when cleaning or carrying out maintenance.

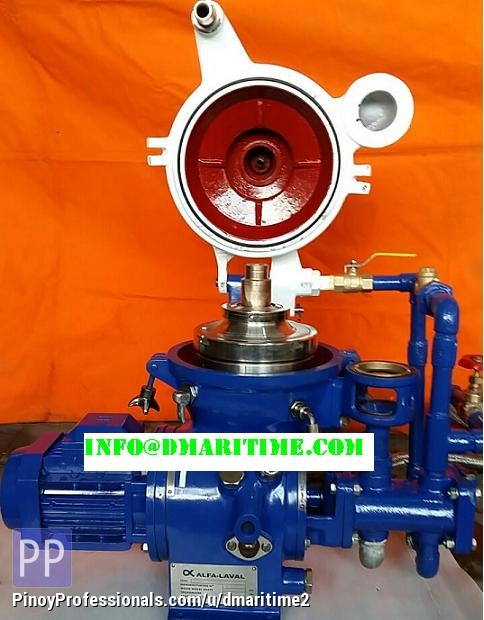

MAB 103 centrifugal separator/oil purifier
Double pump with fittings
Motor - 440 volt, 60 Hz/380V,50HZ 3-phase
Complete set of gravity disks
Water supply device
Complete set of tools
Set of spare parts for extended use
Set of instruction manuals

Separator Throughputs and Capacities

The MAB 103 is suitable for the separation of marine diesel, biodiesel, distillate, lubricating and hydraulic oils. (Throughputs may vary depending on temperature and viscosity of liquids)

Separators re-conditioned according to this mandatory system.

We replace the following parts with New / Unused parts, such as...

1. Bowl Spindle
2. Worm Wheel Shaft
3. Worm & Worm wheel
4. Bearing Housing
5. Bottom Bush
6. All Seal Rings, Gaskets, Springs, Bearings.

Machine is painted as per OEM norms with Epoxy paint,and all bowl parts except for stainless steel parts are Tin plated.

Complimentary accessories along with separators :
Tool Set, 3 pcs gravity discs, anti vibration damper set, set of hoses and set of manuals.
